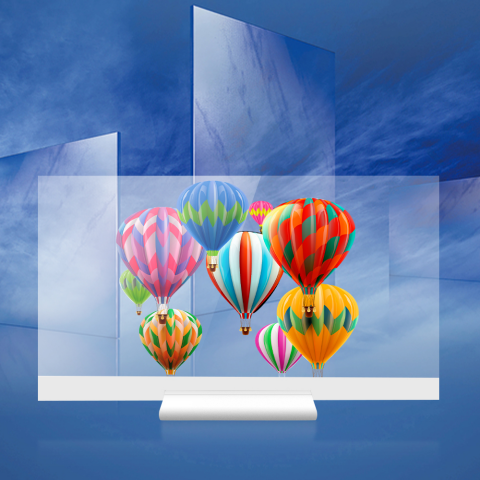

55" transparent OLED
1.07 billion primary colors display
120Hz refresh rate
MEMC motion compensation
Dolby Atmos
Quad-core A73 processor
Display parametersResolution: 1920×1080
Brightness viewing angle: 178°
Backlight: None (pixels self-luminous)
Screen brightness: 400 / 150 cd/m2
Refresh rate: 120Hz
Transparent Ratio: 40%
Processor and storage
CPU: Cortex A73 quad-core
GPU: Mali-G52 MC1
Wireless configuration
WiFi: Dual frequency 2.4GHz/5GHz
Bluetooth: Support Bluetooth 5.0
Infrared: support
Interface and quantity
HDMI: 3
AV: 1
Analog signal DTMB: 1
USB: 2
Ethernet: 1
Fiber: 1
Video playback performance
Built-in player: built-in Mi-Player player
Support RM, FLV, MOV, AVI, MKV, TS, MP4 and other mainstream formats
Video decoding: support MPEG1/2/4, H.264, H.265, etc.
Audio decoding: Dolby Digital Plus, DOLBY ATMOS, DTS-HD and other audio decoding methods
Speaker
Speaker input power: 2×8W, support Dolby Atmos
Power supply and operating environment
Voltage: 100~240V
Working temperature: 0℃~40℃
Humidity: 20%~80%
Storage temperature: -15℃~45℃
Relative humidity: <80%
Please contact us to get the free mechanical drawing.
For the custom project, please no worries, we can design for free.
Optional. Capacitive touch screen or infrared touch screen.
1 year. For extending the warranty, please contact us
